Step 06
PIEZON® PS
No Pain
This trilogy works in harmony and is made for each other:
- Piezon® PS No Pain - Instrument
- Piezon® - Handpiece
- No Pain¹ - Electronic Software
Attend a Swiss dental academy (SDA) course for maximum comfort.
The treatment with the PS Instrument is pain-free¹ if used the correct way. A pain-free¹ and pleasant treatment is the dream of every patient. This is the key to patient loyalty and satisfaction.

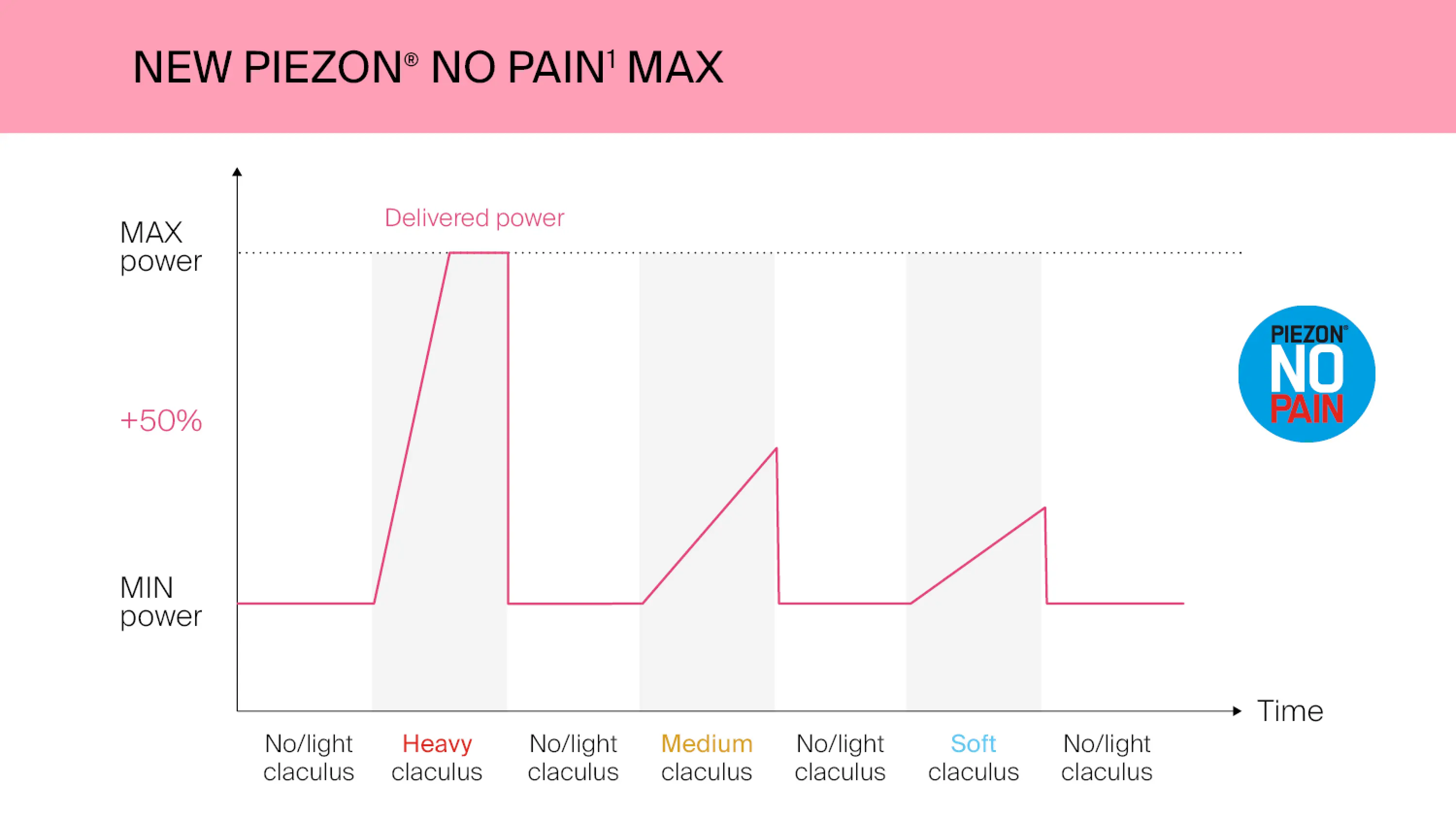

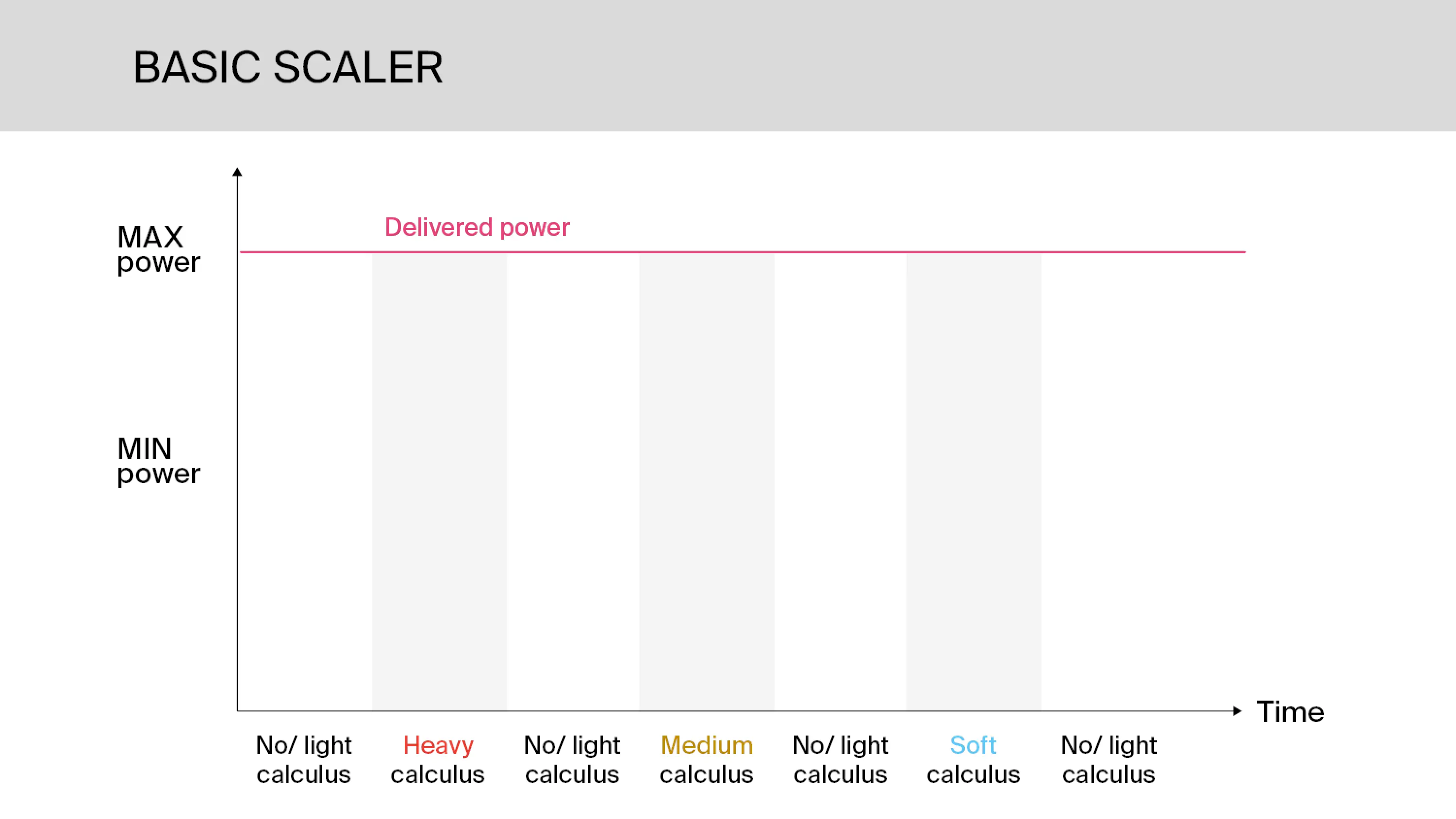

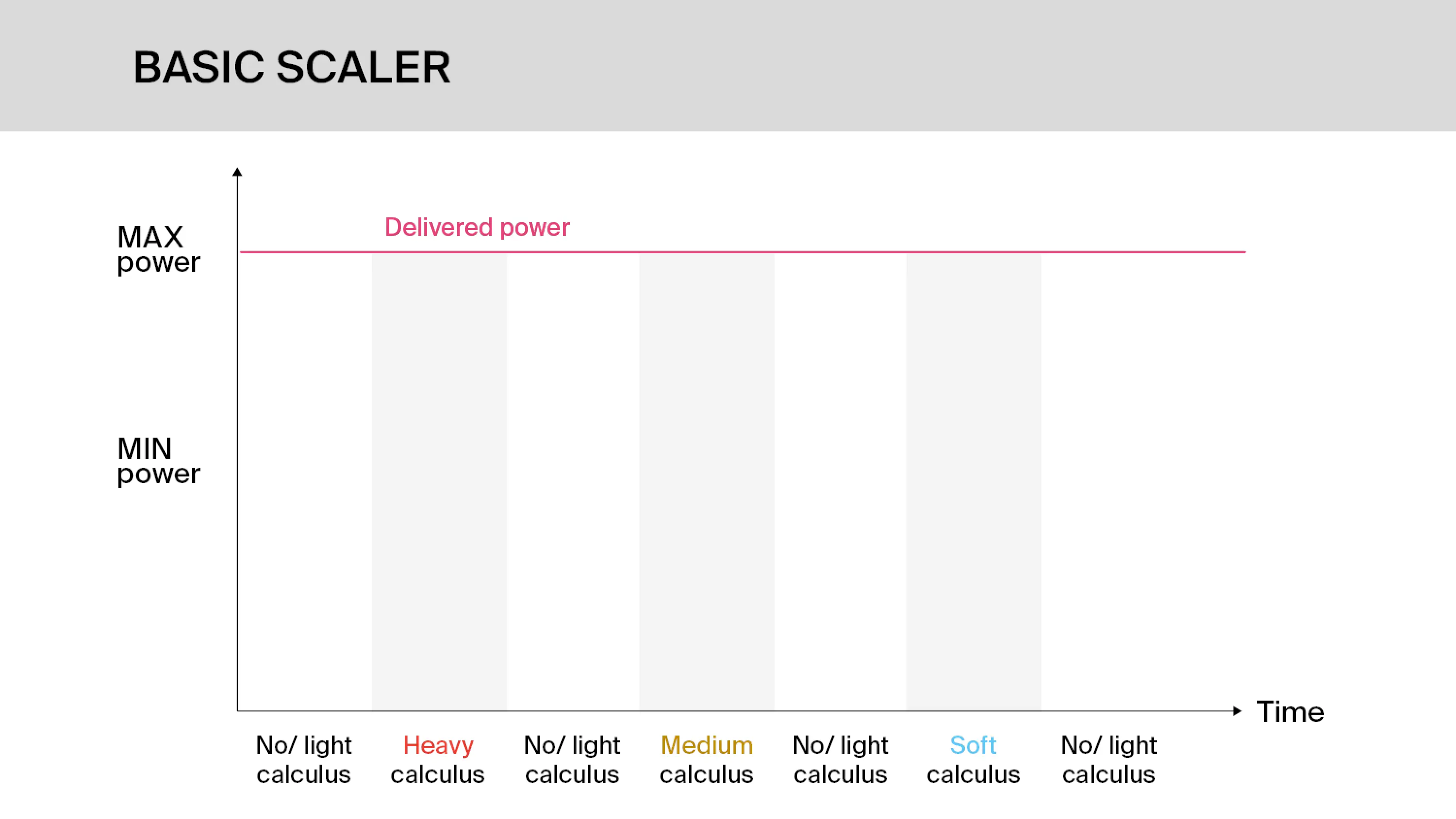

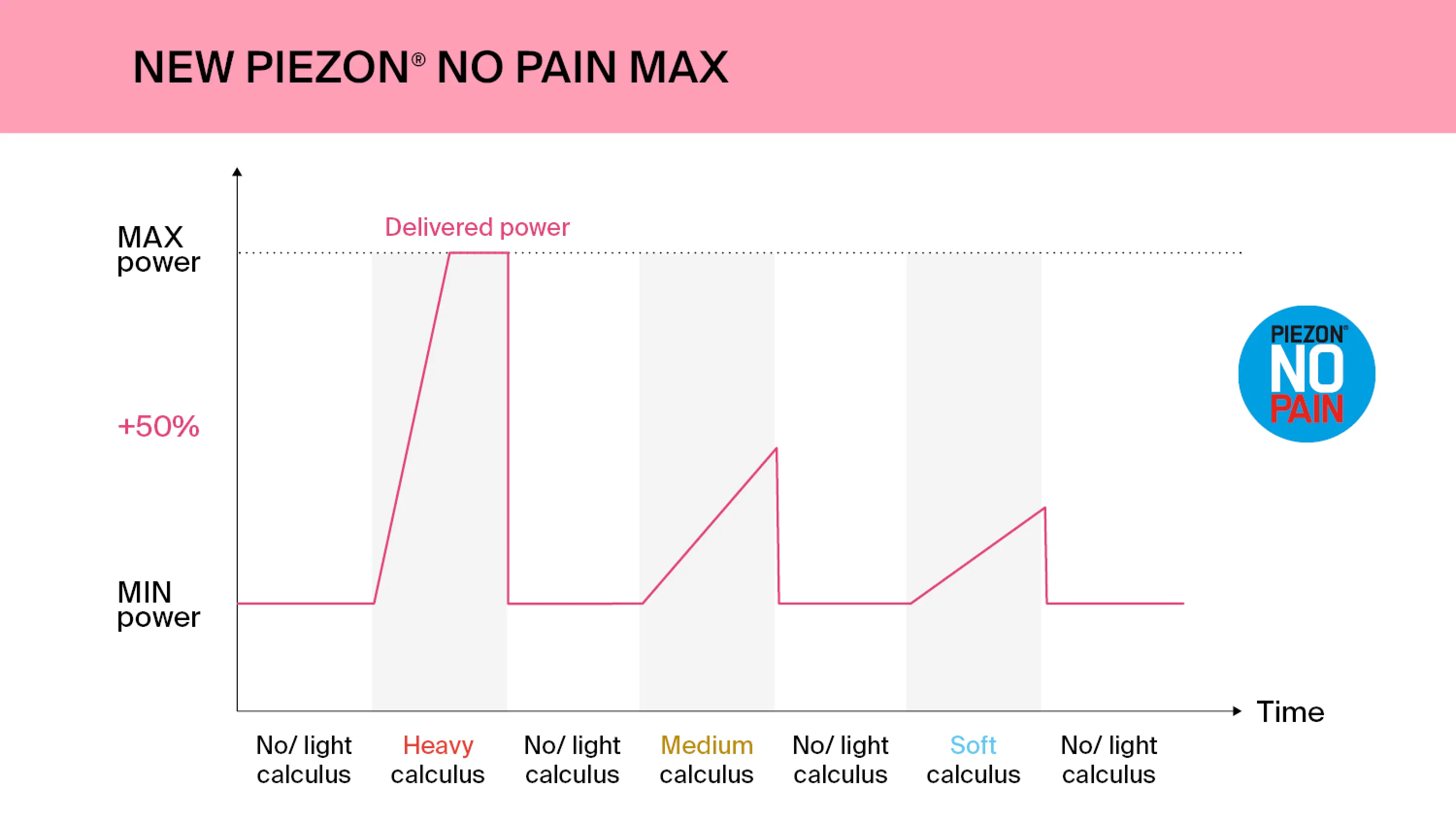

The PIEZON® NO PAIN¹ MAX module automatically adjusts the device's power based on the type of calculus it encounters. Instead of always using the maximum preset power, the system dynamically increases or decreases the power depending on the nature of the calculus, rather than just its presence.
The PIEZON® system technology was originally invented in Switzerland in 1981 by Pierre Mabille, co-founder of EMS. It was redesigned with all the technical expertise from the Valley-de-Joux and in collaboration with Jaeger-LeCoultre (the famous watchmaker).
The PS Instrument: for 95% of all cases.
Supra & subgingival scaling and periodontal debridement up to 10 mm. The PS instrument is designed to be as slim and smooth as a periodontal probe - minimally invasive, maximally preventive and gum friendly, preserving the tissues with its unique linear movement.
By using only one instrument to do 95% of the work, things will be easier. For the 5% that remain we recommend our new curved PIEZON® PSL and PSR Instruments.
MADE IN NYON, SWITZERLAND
You need to practice to be a master
Book a Guided Biofilm Therapy training in the comfort of your practice and learn how to use and get the most out of your instrument PS.
Go to courses
For special situations – very hard calculus or interproximal areas
PIEZON® PI Max
The PIEZON® PI Instrument features a tip coating made of high quality PEEK that safely cleans the sensitive surfaces of implant abutments and restorations.
It easily debrides plaque with surgical precision thanks to its linear movements and medical-grade stainless steel. It is ideal for minimally invasive implant maintenance and for maximum patient comfort.
APPLICATIONS:
Removes calculus supra- and subgingivally up to 3 mm:
- Around implants
- Around veneers
- Around crowns
- Around orthodontic appliances
- Primary teeth
PIEZON® PSR & PSL
Superior efficacy in heavy calculus removal compared to the PIEZON PS NO PAIN instrument. They save time, especially during initial periodontal therapy, and are indicated for adult patients only.
APPLICATIONS:
Removes calculus from areas that are difficult to reach:
- Distal and mesial interproximal surfaces
- Supragingival and subgingival up to 8 mm
PIEZON® P
Instrument is mainly used for the removal of stubborn, hard supragingival and subgingival calculus and concretions in all quadrants.
APPLICATIONS:
Removes stubborn calculus from :
- Subgingival and supragingival up to 4 MM
Stay original
The PS Instrument, the Handpiece and the NO PAIN¹ electronic module have to vibrate in harmony as a trilogy. Using so-called “compatible” and copy tips from third parties can damage your patients’ teeth as well as EMS handpieces. The originals were developed and made for each other by EMS.
One Instrument PS is designed for up to 1,000 treatments, thus reducing the cost of one treatment to only a few cents. Therefore, there is absolutely no reason to "save" money by using so-called "compatible" tips.
MADE IN NYON, SWITZERLAND
FAQ
PIEZON® NO PAIN¹ uses linear oscillations at 32,000 movements per second to create precise and gentle vibrations. It includes:
- Intelligent Power Feedback: Automatically adjusts output based on resistance detected during use.
- Linear Movement: Reduces trauma to soft tissues and maximizes comfort.
- Temperature Control: Water temperature can be adjusted (non-heated up to 40°C) for sensitive patients.
PIEZON® NO PAIN¹ is EMS's advanced ultrasonic scaling system, engineered to provide maximum comfort during treatment. It uses piezoelectric technology to deliver linear, precise vibrations — unlike magnetostrictive or air scalers — and only delivers power when and where it's needed.
The system works as a trilogy of three core elements:
- Electronic Module (NO PAIN¹) – Intelligently regulates power delivery in real time.
- PIEZON® Handpiece – Houses the piezoelectric crystal that ensures precise, linear motion.
- PS Instrument – A slim, uniquely versatile tip designed for both supragingival and subgingival use.
The NO PAIN¹ module uses adaptive power control — power increases only when resistance (like calculus) is detected and decreases when it’s no longer needed. This smart feedback system:
- Reduces unnecessary vibration.
- Enhances comfort for sensitive patients.
- Avoids overheating or over-instrumentation.
The EMS PIEZON® PS (Perio Slim) Instrument is a precision-engineered ultrasonic scaler tip crafted in Switzerland. It's designed for both supragingival and subgingival scaling, reaching depths up to 10 mm. Its slim, probe-like design ensures gentle, minimally invasive treatments, making it suitable for 95% of clinical cases.
Each PS Instrument is designed for over 1,000 treatments, translating to a cost of just a few cents per patient. Regular checks are recommended, and the instrument should be replaced once wear reaches 2 mm to maintain optimal performance.
Yes, EMS offers:
- PIEZON® P Instrument: For removing hard calculus in shallow pockets.
- PIEZON® PSL/PSR Instruments: Designed for challenging interproximal areas.
- PIEZON® PI Instrument: Tailored for implant maintenance with a PEEK-coated tip.
The Swiss Dental Academy offers comprehensive training sessions, both in-person and online, to ensure clinicians can maximize the benefits of the PS Instrument.
- The PIEZON® NO PAIN module integrated into the AIRFLOW® Prophylaxis Master, providing dynamic power regulation that detects and adjusts for calculus.
- The original PIEZON® handpiece.
- The original PIEZON® PS Instrument.
- A clinician trained by the Swiss Dental Academy.
Brochure to download
Clinical Evidence PIEZON® PS
Download
PIEZON® PS brochure
Get exclusive insights by leading dentists, hygienists and researchers in preventive dentistry.
Download
Treatment recommandations
This document aims to provide users with the general precautions and treatment recommendations to remove biofilm, stains and calculus from natural teeth, restorations and implants.
